Leak and flow testing for the automation

Tecna can provide a complete instrument line dedicated to the automation. The TM3 pneumatic modules represent the blend of traditional leak test equipment and are the best solution to integrate a reliable and compact testing station into your automated system.

NUTZEN
BESCHREIBUNG
TECHNISCHE DATEN

NUTZEN

Fully integrated pneumatics and electronics
Reduced test time
Ease of use and installation
Software to collect and manage the tests data
Viewing and management of multiple testing station

BESCHREIBUNG

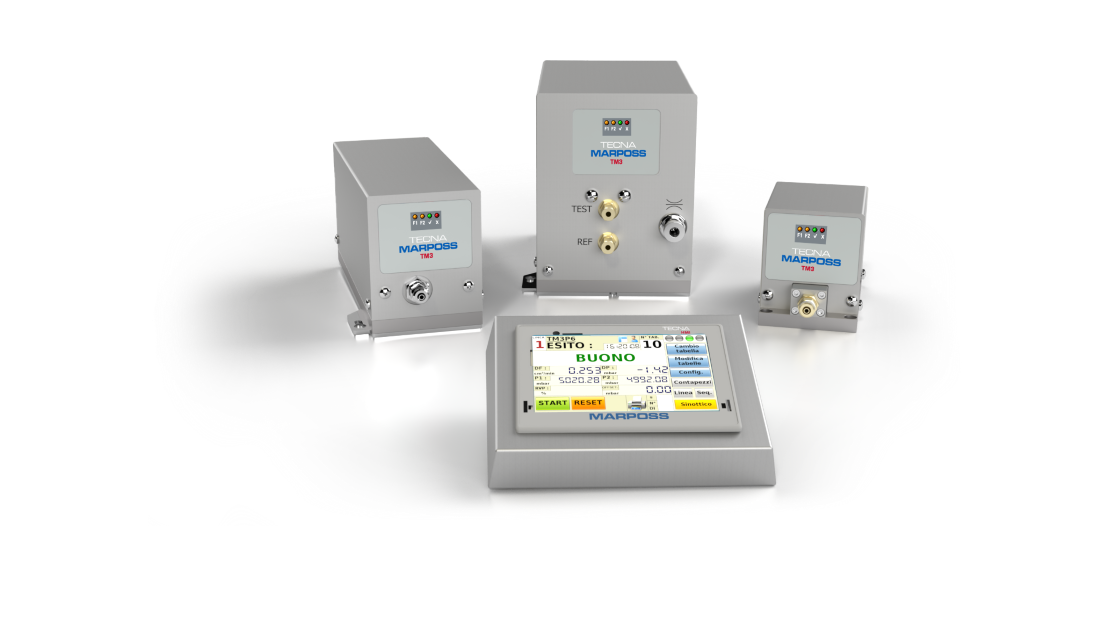

The absence of display buttons on TM3 modules make possible to reduce footprint. This ensure the TM3 placement in every type of system, as close as possible to the component under test.
The strength of minimizing unnecessary volumes and increasing the speed and sensitivity of the test make the Delta TM3 pneumatic modules a versatile solution for almost every workbenches.

TECHNISCHE DATEN

Power Supply	24 Vdc - 1 A max
Compressed Air Line	Dry, non-condensing, 5-micron filtered, and oil-free air, compliant with ISO8573-1, 6x4 mm hose fitting 4x2.5 / 6x4 / 8x6 mm Pilot pressure compatible with the instrument full scale
Sensor Calibration	Remote control software procedure with external sample instruments
A/D Converter	2x24 bits
Pressure Regulator	External (option)
Indicators	4 LEDs: two yellow (test phases), green (passed), red (failed)
Test Counter	PASSED and FAILED totals, resettable to zero
Clock	Clock Date and time, with supercap, 7 days back up max
Programmable parameters	Up to 300 testing tables, general testing parameters
PLC Connection	2 Photocoupled inputs: START / RESET 4 Photocoupled outputs: TEST RUNNING, PASSED, FAILED, ALARM 3 Additional digital inputs (-I3)
Data interfaces	RS485 and USB communication interfaces with Modbus protocol
Staubli® Connector	For leak masters available on external connection
Housing	Unpainted anodized aluminium
