描述

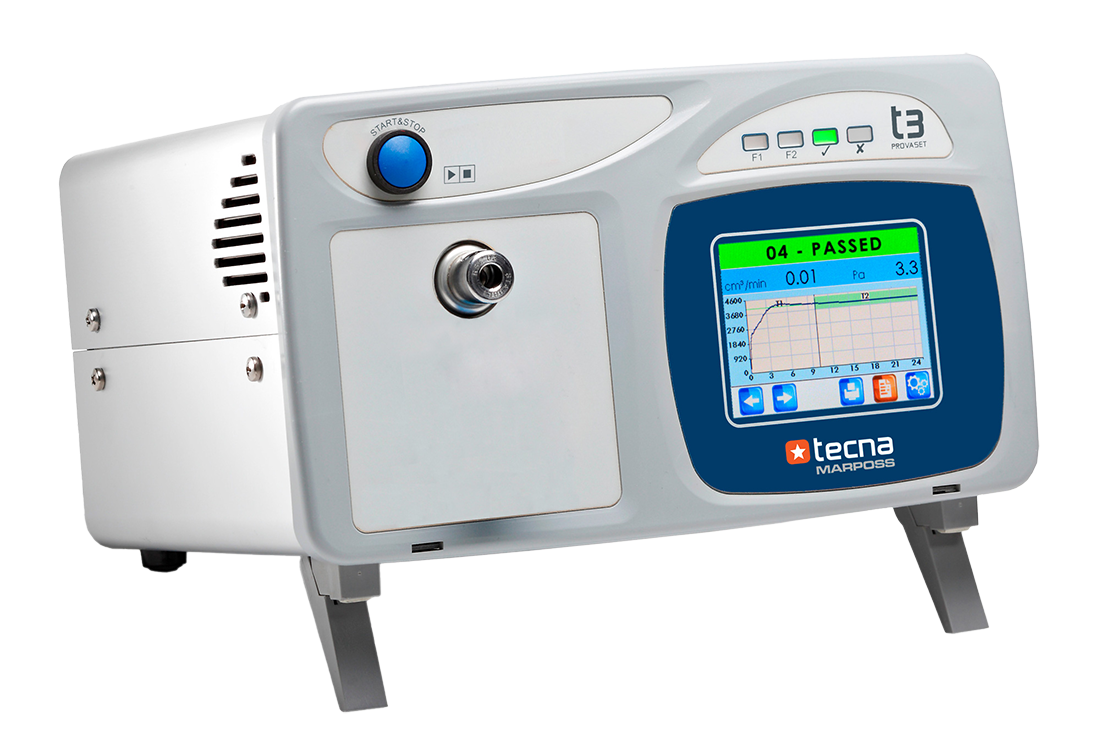

The balanced pressure method allows to obtain measurements that are independent from the tested volume and it offers the best stability and precision. PROVASET T3PQ is suitable for all industrial segments, on testing benches, in production lines or in fully automated systems.
At last, the control of external automations, the connection with barcode readers and printers and the possibility to record the tests on USB memories or via ethernet make it a complete and suitable instrument for the most modern production methods.
优势
2 programmable pneumatic outputs for external commands (coupler/marker).
I/O expansion: adds digital PLC inputs/outputs (8+8) and a RS232/RS485 serial line.
Additional USB, Ethernet, ProfiBUS or CANbus interfaces for remote control and data collection.
Real time SPC statistical analysis graphs.
Software for managing label printer and barcode reader.
Air filters
Certificated Leak Master to be inserted in the Staubli® connector
Remote control keypad
3-colours indicator light with loud sound alert
External valves for a quicker filling phase
技术规格
|
Power supply
|
External 24 Vdc; alternatively 85÷264 Vac, 35W
|
|
Compressed air line
|
Dry, non-condensing, 5-micron filtered, and oil-free air, compliant with ISO8573-1.
|
|
A/D converters
|
24 bits
|
|
Calibration
|
Calibration certificates for pressure and flow sensors
Software-guided procedure with primary instruments.
|
|
Pressure regulator
|
Electronic
|
|
Keyboard
|
Resistive touch screen
|
|
Display
|
3.5” colour TFT LCD display
|
|
Indicators
|
4 LED lights (testing phases, passed/rejected result)
|
|
Test counter
|
Pass and Reject totals, resettable to zero
Statistic option: mean value, minimum, maximum, standard deviation, normal distribution, CP, CPK, hour production totals
|
|
Audio alarm
|
Built-in beeper with programmable duration
|
|
Clock
|
Date and time, with supercap, max autonomy 7 days
|
|
Programmable parameters
|
100 testing tables with sequential mode, general parameters, volume calculation to indicate the leak rate in cm3/min or cm3/h
|
|
PLC connections
|
8 photocoupled inputs and 8 photocoupled outputs
Each I/O is fully programmable
Control of external automation (coupling, security cage...) without PLC
|
|
Data interfaces
|
Configurable serial lines RS232/RS485
Interface USB-B (device)
Protocols: Modbus RTU, CSV ASCII output, barcode, printer
|
|
Staubli® Connector
|
Standard, for certificated Leak Master
|
|
Housing
|
Unpainted anodized aluminium, ABS
|
